JPC series brass/stainless steel metal pneumatic push-to-connect air pipe fittings
JPC series brass/stainless steel metal pneumatic push-to-connect air pipe fittings

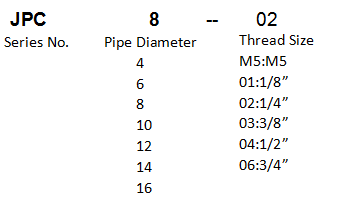

Order code
Technical parameter
|
Model |
JPC4-M5 JPC4-01 JPC4-02 JPC4-03 |
JPC6-M5 JPC6-01 JPC6-02 JPC6-03 JPC6-04 |
JPC8-M5 JPC8-01 JPC8-02 JPC8-03 JPC8-04 |
JPC10-01 JPC10-02 JPC10-03 JPC10-04 |
JPC12-01 JPC12-02 JPC12-03 JPC12-04 |
JPC14-02 JPC14-03 JPC14-04 |
JPC16-02 JPC16-03 JPC16-04 JPC16-06 |
|
|
Fluid |
Air |
|||||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
Temperature |
0℃~60℃ |
|||||||
|
Applicable tube |
PU/Nylon tube/PE tube |
|||||||
|
Thread size |
1/8”,1/4”,3/8”,1/2”,3/4" |
|||||||
|
Material of body |
Brass/Stainless Steel 304 |
|||||||
Dimension
Feature
Metric Type
A
D
C
F
L
G
H
SW
SW1
JPC4-01
4
R1/8
13.5
8
17
11.3
8
10
2.5
JPC4-02
4
R1/4
13.5
8
18
15.8
9
14
-
JPC6-01
6
R1/8
17
11.8
23.4
13.5
8
12
4
JPC6-02
6
R1/4
17
11.8
21.2
15.8
9
14
4
JPC6-03
6
R3/8
17
11.8
19.2
19.1
9.5
17
4
JPC6-04
6
R1/2
17
11.8
21
23.7
11.5
21
-
JPC8-01
8
R1/8
17.5
13.6
27.5
15.8
8
14
5
JPC8-02
8
R1/4
17.5
13.6
24.4
15.8
9
14
6
JPC8-03
8
R3/8
17.5
13.6
21
19.1
9.5
17
6
JPC8-04
8
R1/2
17.5
13.6
21
23.7
11.5
21
6
JPC10-01
10
R1/8
19.7
15.7
29.4
19.1
8
17
5
JPC10-02
10
R1/4
19.7
15.7
30.4
19.1
9
17
6
JPC10-03
10
R3/8
19.7
15.7
26.1
19.1
9.5
17
8
JPC10-04
10
R1/2
19.7
15.7
23.8
23.7
11.5
21
8
JPC12-01
12
R1/8
18.7
17.8
29.2
21.4
8
19
5
JPC12-02
12
R1/4
18.7
17.8
30.2
21.4
9
19
6
JPC12-03
12
R3/8
18.7
17.8
28.2
21.4
9.5
19
8
JPC12-04
12
R1/2
18.7
17.8
25.7
23.7
11.5
21
8
JPC14-03
14
R3/8
20.5
20.8
31.8
23.7
9.5
21
-
JPC14-04
14
R1/2
20.5
20.8
29.8
23.7
11.5
21
-
JPC16-03
16
R3/8
21.5
22.8
33.8
26.9
9.5
24
-
JPC16-04
16
R1/2
21.5
22.8
32.8
26.9
11.5
24
-
JPC16-06
16
R3/4
21.5
22.8
31.8
30.4
12
27
-
This fitting is made of high standard brass/stainless steel material, with good quality FKM seal ring, high pressure resistance 1.6MPa, high temperature resistance -20℃-200℃, resistant to oxidation and corrossion
