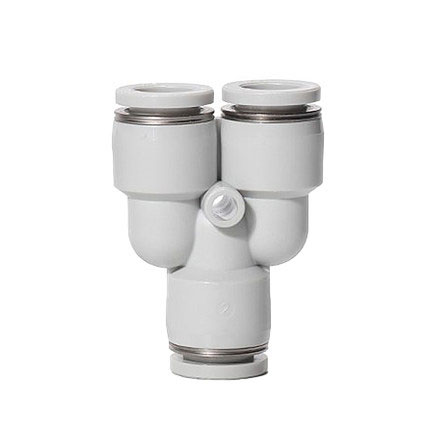

PY Tee Connector Pneumatic Quick Connect Pipe Tube Fitting

Order code

Technical parameter

Model		PY-4	PY-6	PY-8	PY-10	PY-12	PY-14	PY-16
Fluid		Air
Max. Pressure		1.32Mpa(13.5kgf/cm2)
Pressure range	Normal pressure	0~0.9Mpa(0~9.2kgf/cm2)
	Low pressure	-99.99~0Mpa(-750~0mmHg)
Temperature		0℃~60℃
Applicable tube		PU/Nylon tube
Tube outer size		4mm,6mm ,8mm,10mm,12mm,14mm,16mm

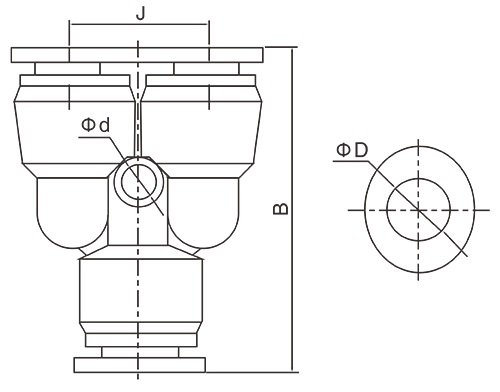

Dimension

Metric Type	φD	B	J	φd
PY-4	4	36	11	2.5
PY-6	6	39	13	3.5
PY-8	8	43	15	4
PY-10	10	49	19	4
PY-12	12	54	21	4
PY-14	14	53	23.5	4
PY-16	16	63	27	4

Feature

.Union PY Tee Connector Pneumatic Quick Connect Pipe Tube Fitting is high Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.

.white plastic pneumatic fittings is Sturdy and Durable and Has a Long Service Life.

. Easy Installation and Disassembly, Good Sealing Performance.

.Y tee union tube fittings Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.

. You Can Easily Insert or Pull out the Trachea Without Any Tools.
