TN Series double acting twin rod Double-Shaft guided air Cylinder

Order code

Symbol

Technical parameter

Bore size(mm)	10	16	20	25	32
Acting type	Double acting
Fluid	Air
Operating pressure	0.1~0.9MPa
Proof pressure	1.35MPa
Temperature ℃	-5~60
Cushion type	bumper
Port size	M5×0.8				1/8”
Body material	Aluminum Alloy

Stroke

Bore size(mm)	Standard stroke(mm)	Tolerate stroke(mm)	Max. Stroke(mm)
10	10 20 30 40 50 60 70	70	100
16	10 20 30 40 50 60 70 80 90 100 125 150	150	200
20	10 20 30 40 50 60 70 80 90 100 125 150	150	200
25	10 20 30 40 50 60 70 80 90 100 125 150	150	200
32	10 20 30 40 50 60 70 80 90 100 125 150	150	200

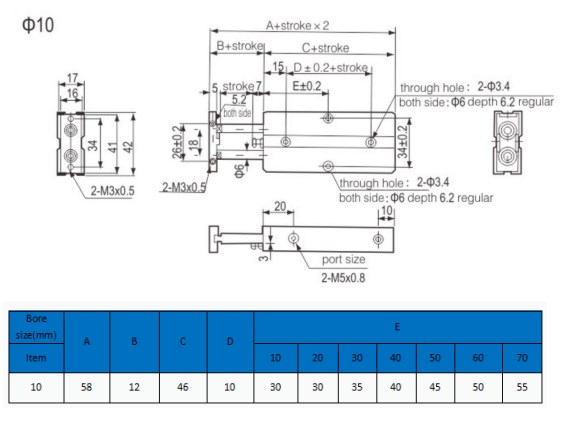

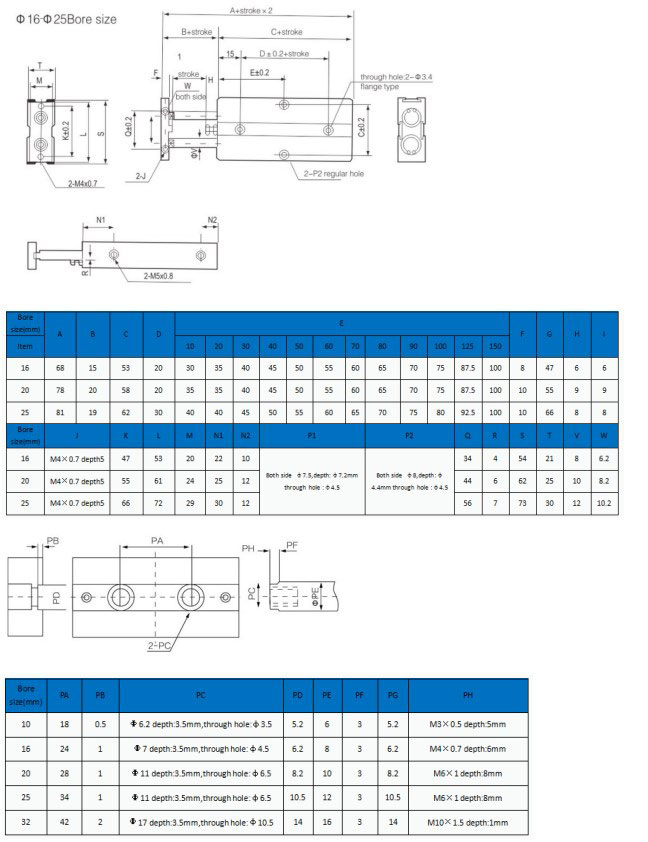

Dimension

Feature

.TN Series Double Shaft Two Rod Guide Cylinder Twin Pneumatic Air Cylinder with Magnet and suitable slot is designed for magnetic sensor fixing

.Embedding mounting and no need other brackets,room saving

.Easy to assemble and easy to maintain

.With self lubricating bearing,the piston rod is lubrication free.

.Precision grinding piston rod,cylinder parts were processed by high precision CNC lathe and CNC machining centre,and also good seals to guarantee good action and long lifetime.
