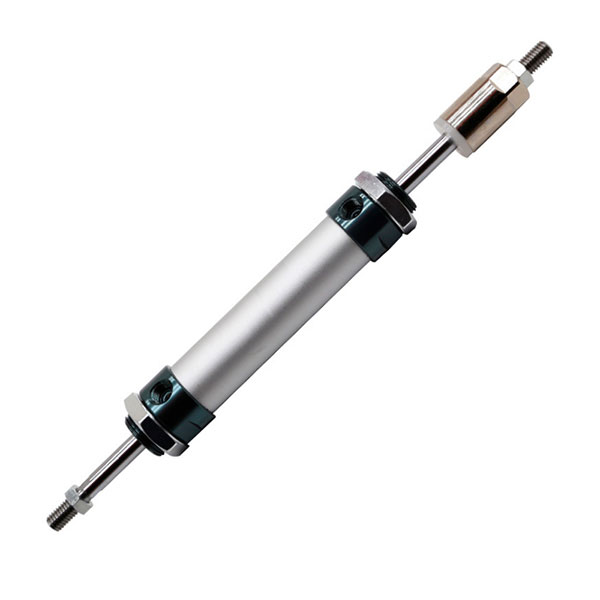

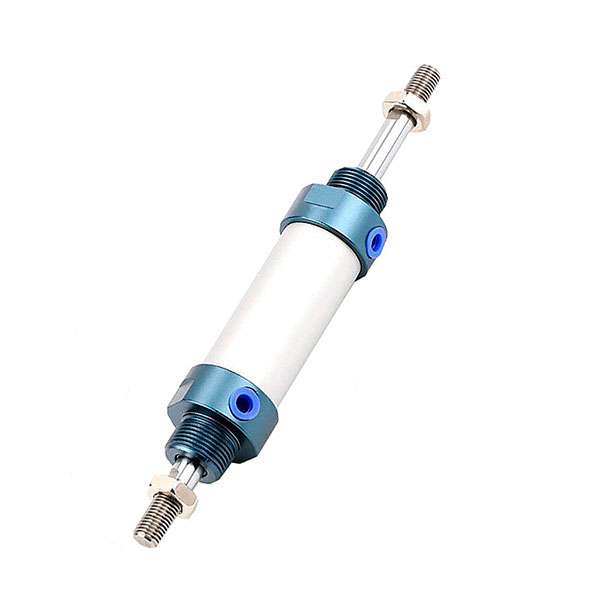

MAL Series Aluminum Alloy Low Speed  Multi-mounting Small Mini Air Cylinder

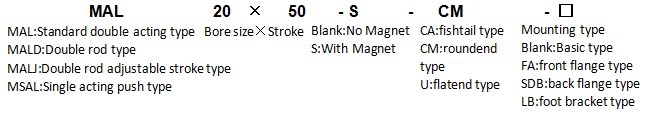

Order code

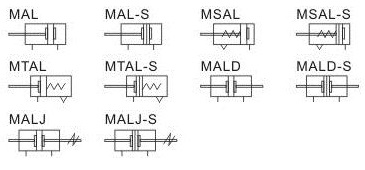

Symbol

Technical parameter

Bore size(mm)		16		20	25	32	40
Acting type		Double acting
Fluid		Air
Operating pressure		0.1~1.0MPa
Proof pressure		1.5MPa
Temperature ℃		-20~70
Speed range mm/s		30~800
Cushion type	Standard type	Anti-crush cushion
	Bumper type	Adjustable cushion
Port size		M5	1/8”					1/4”

Stroke

Bore size (mm)	Standard stroke (mm)	Max.stroke (mm)	Allowable stroke (mm)
16	25 50 75 80 100 125 150 160 175 200	300	500
20	25 50 75 80 100 125 150 160 175 200 250 300	500	650
25	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	650
32
40

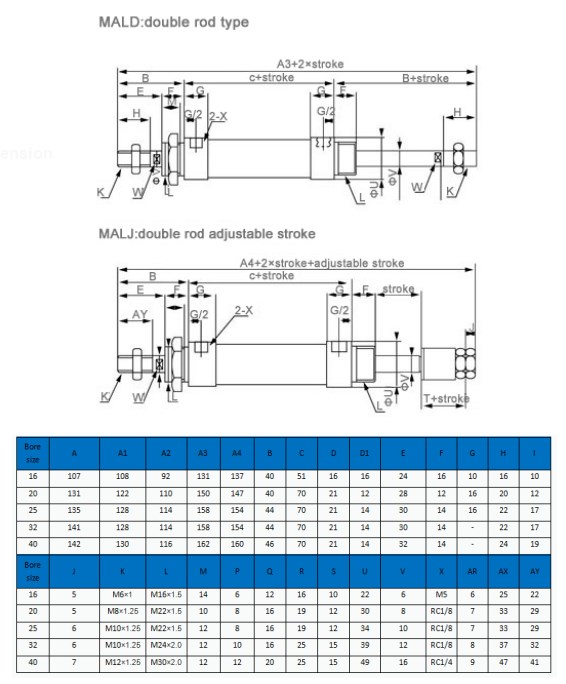

Dimension

Feature

.MAL mini cylinder is adapt the bearing with oil, lubrication is not required for the piston rod.

.Not only the fixed cushion, the adjustable cushion is also optional in the end of the cylinder, so that it will be calm when changing the directions.

.Heat resistance performance With anti-heat material, the working temperature of the cylinder could be up to 150℃

. Mluti installation accessories are available

. A magnet is installed on the piston, by switching the button to check the operation position of the cylinder
