G1/4 3/2 way normally closed pneumatici foot pedal valve FV-320 FV-420

Order code

Symbol

Technical parameter

Model No	FV320	FV420
Fluid	Air
Acting	Direct acting type
Port size	06:G1/8”	08:G1/4”
Valve type	3/2 way	4/2 way
Pressure range	0-0.8MPa
Temperature	-5℃~60℃
Lubrication	No required

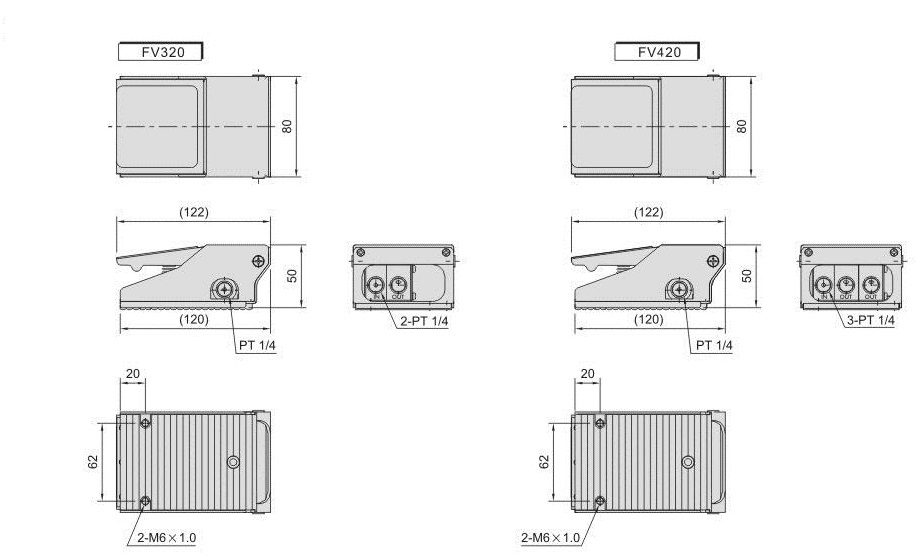

Dimension

Feature

FV320 FV420 foot pedal valve is ideally suited to control spring or loaded return pneumatic cylinders allowing pressurized extension and vented retraction or single-directional pneumatic motors allowing control only in a single direction

FV320 can simply control the air source unit on or off

FV420 foot switches could be used in a range of gas control products, such as automotive and automation equipment, without the need to pass electricity.
